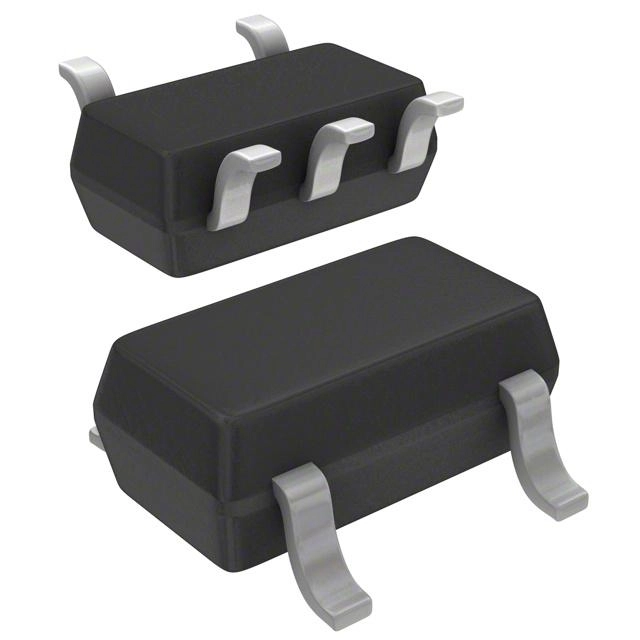

LM2831YMF/NOPB
IC REG BUCK ADJ 1.5A SOT23-5
rün
Bilgileri(ROHS Uyumlu)
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1.5A SC-74A, SOT-753
- Üretici
- Texas Instruments
- Function
- Step-Down
- Output Configuration
- Positive
- Topology
- Buck
- Output Type
- Adjustable
- Number of Outputs
- 1
- Voltage - Input (Min)
- 3V
- Voltage - Input (Max)
- 5.5V
- Voltage - Output (Min/Fixed)
- 0.6V
- Voltage - Output (Max)
- 4.5V
- Current - Output
- 1.5A
- Frequency - Switching
- 550kHz
- Synchronous Rectifier
- No
- Operating Temperature
- -40°C ~ 125°C (TJ)
- Mounting Type
- Surface Mount
- Package / Case
- SC-74A, SOT-753
- Supplier Device Package
- SOT-23-5
- Base Part Number
- LM2831
- Rohs
- Uyumlu
