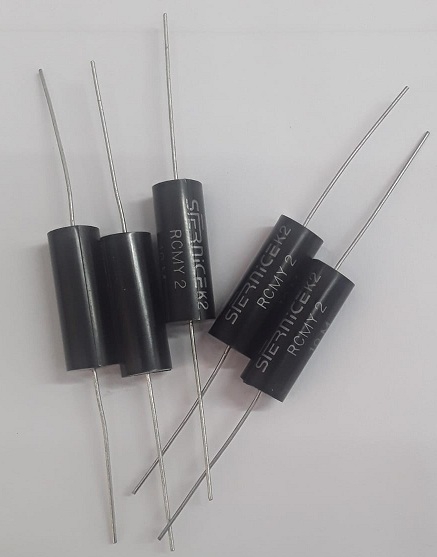

RCMY2 10M 0,5W %1 Molded Metal Film Resistors Vishay Sfernice

Document Number: 52012
Revision 16-Jul-02
www.vishay.com
40
RCMY
Vishay Sfernice
For technical questions, contact sfer@vishay.com
TheRCMY 2 and RCMY 4 resistors are particularly well
suited for high voltage applications. The technology used
ensures very good stability under the most severe and
diverse operating conditions.
Due to their excellent performance, the RCMY2 and RCMY4
SFERNICE SERIES AND STYLES
Power Rating at 70°C (Pr)
Resistance Tolerance
Maximum Voltage
Resistance Value Range
Temperature Coefficient
Insulation Resistance (Typical)
Critical Resistance
0.5W
1MΩto 100MΩ
± 1%± 2%± 5%
3kV
> 107MΩ
18MΩ
1MΩto 250MΩ
10kV
K2≤± 100ppm/°C
100MΩ
RCMY2
1W
RCMY4
FEATURES
•0.5W to 1W at 70°C
•NF C 93-230
•Very high ohmic values
•High insulation
•Accurate dimensions
•Great mechanical strength
Molded Metal Film, High Ohmic Values
High Voltage Resistors
