TLP595G PHOTO RELAY Fet-output Optocoupler, 1-channel, 2.5kv Isolation, Dip
Marka : TOSHİBA
53.64 TL
+Kdv
İADE VE DEĞİŞİM YAPILMAMAKTADIR.
TLP595G
PHOTO RELAY
Fet-output Optocoupler, 1-channel, 2.5kv Isolation, Dip

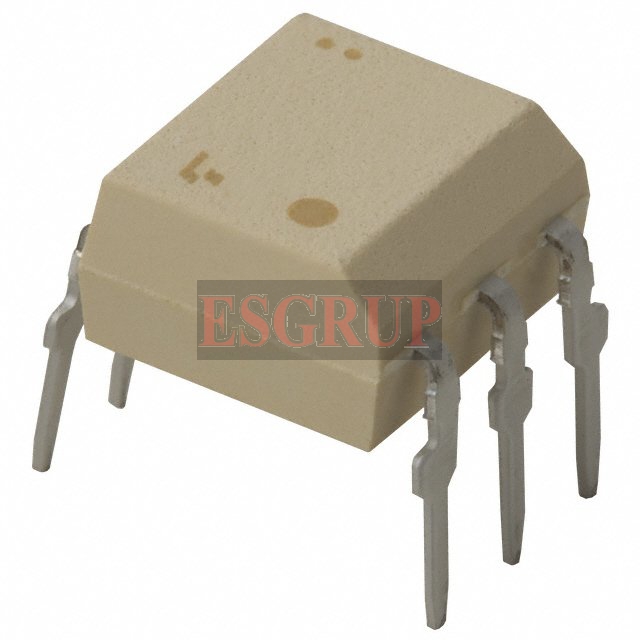

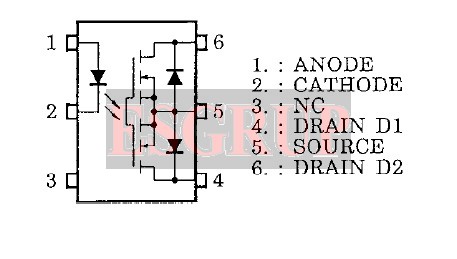

The Toshiba TLP595G consists of an aluminum galliumarsenide infrared emitting diode optically coupled to aphoto-MOSFET in a six lead plastic DIP package. TheTLP595G is a bi-directional switch which can replacemechanical relays in many applications.• Peak Off-State Voltage : 400V (Min.)• On-State Current : 150mA (Max.) (A Connection)• On-State Resistance : 12 W (Max.) (A Connection)• Isolation Voltage : 2500Vrms (Min.)• UL Recognized : UL1577, File No. E67349
